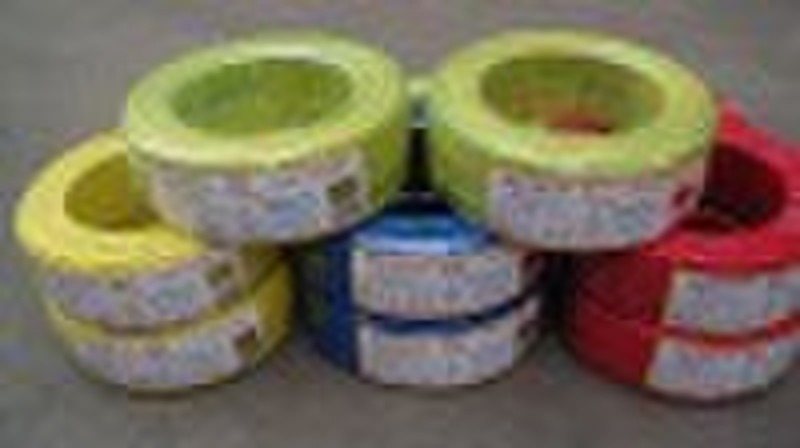

CU/PVC insulated wire
Anne Li
Contact person
Basic Information
| Place of Origin | Chongqing China (Mainland) |
|---|---|
| Brand Name | Yufeng |
| Model Number | BV |
| Type | Insulated |
| Conductor Material | Copper |
| Conductor Type | Solid |
| Insulation Material | PVC |
CU/PVC insulated wireStandards: The product is GB/T5023-2008 "rated voltage 450/750V and below PVC insulated cables", JB/T8734-1998 "rated voltage 450/750V and below PVC insulated cables and wires and cords" standard production , but can also require the user recommendation by the International Electrotechnical Commission standard IEC, also according to user requirements for the design and production, and can produce flame-retardant series, fire series, halogen and environmental protection products.Application: The products are suitable for rated voltage 450/750V and below the power plant, the fixed electrical wiring and flexible connections for use. Remark:Rated voltage U. / U is 450/750V, 300/500V and 300/300V.long-term maximum allowable operating temperature:60227IEC07 (BV-90) ... ... ... ... ... ... ... ... ... ... 9060227IEC08 (BV-90) ... ... ... ... ... ... ... ... ... ... 90Other models ... ... ... ... ... ... 70The ambient temperature of cable running should be not less than 0cable bend radius:D ≤ 25mm ... ... ... ... ... ... ... ... ... ... ... ... ... ... ≥ 4DD> 25mm ... ... ... ... ... ... ... ... ... ... ... ... ... ... ≥ 6D(D-cable diameter)
Delivery terms and packaging
Packaging Detail: wooden crate ,or as your request Delivery Detail: according to the quantity
Port: as your request
